Product Introduction

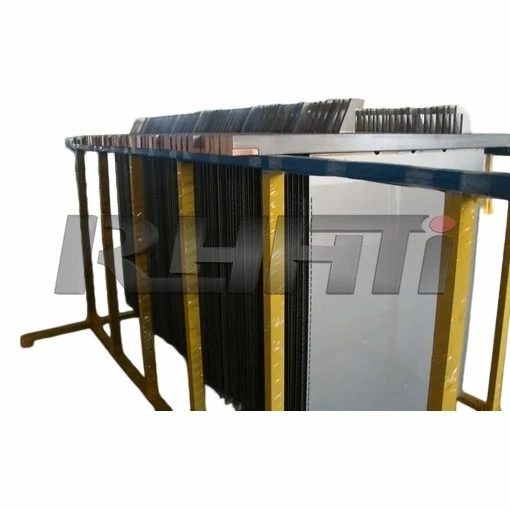

Our 316L stainless steel permanent cathode plate (UNS S31603) is a long-cycle, reusable permanent electrolytic substrate suitable for copper, nickel, cobalt, and zinc electrowinning and electrorefining. Made of ASTM 316L low-carbon molybdenum stainless steel, it exhibits stable corrosion resistance in low-chloride sulfuric acid electrolytes. It features an integrated T2 copper-clad conductive beam, robotically welded on both sides with full laser welding for seamless welds, preventing leakage and weld corrosion. The plate undergoes precision cold rolling and mirror polishing, forming a uniform passivation film on the surface. The metal sheet can be completely peeled off without sticking, perfectly matching fully automated stripping equipment. Compared to disposable starting plates, it significantly reduces labor costs; compared to Grade 2 titanium cathodes, it offers a significant raw material price advantage and a service life of 10-15 years. Our factory has been deeply involved in the production of metallurgical cathodes for over ten years, and our products are exported to Africa, Southeast Asia, Europe, and the United States. We are committed to becoming your stable supplier of high-performance, cost-effective permanent cathodes.
We have been deeply involved in the production of metallurgical cathodes for over ten years, and our products are exported to Africa, Southeast Asia, Europe, and the United States.
Product Parameters
|
Parameter Item |
Detailed Specification |
|
Raw Material |
ASTM 316L Stainless Steel, UNS S31603 |
| Applicable Industries |
Copper, Nickel, Cobalt, Zinc Electrowinning and Electrorefining |
|
Sheet Thickness |
2.0mm–4.0mm, full-size customization supported |
|
Dimensional Tolerance |
Length and width error ≤±1mm, flatness ≤0.4mm/meter |
|
Conductive Beam |
316L outer shell + T2 pure copper inner core composite structure |
|
Welding Process |
Robotic double-sided full laser seamless full welding |
|
Surface Treatment |
Cold-rolled mirror polishing, generating a uniform passivation film |
|
Service Life |
Low-chlorine electrolyte (chloride ion <50mg/L) 10–15 years |
|
Current Efficiency |
92%–95%, low tank voltage drop, stable conductivity |
|
Edge Protection |
Replaceable PPO composite anti-corrosion insulating strip |
|
Peeling Performance |
Dense and intact metal sheet, 100% peeling with no residue on the board surface |
Core Product Advantages
Recyclable permanent cathode, significantly reducing overall production costs. 316L 1. Stainless steel permanent cathodes replace disposable starter plates, eliminating the need for labor and equipment investment in starter plate manufacturing; raw material costs are significantly lower than Grade 2 titanium cathodes, making them suitable for small and medium-sized smelters with limited budgets and low chloride ion content in the electrolyte.
01
Copper composite conductive beams reduce electrolysis power consumption. The beams have a thickened T2 copper core encased in stainless steel, maximizing the conductive contact area, reducing overall electrode resistance and cell voltage, improving the current efficiency of the entire production line, and reducing power consumption per ton of electrolytic metal.
02
Robotic full welding process prevents leakage and deformation. Double-sided fully automated laser flux-free full welding eliminates micro-gaps, preventing acid seepage; the 316L substrate has high tensile strength, resisting bending and denting during long-term cyclic electrolysis, and maintaining stable plate flatness year-round.
03
Mirror-finish passivated surface, compatible with fully automated stripping equipment. Multiple cold rolling and mirror polishing processes create a uniform and stable passivation film on the surface, preventing metal crystal adhesion; precipitated copper, nickel, cobalt, and zinc metal scales are completely removed, compatible with mainstream ISA/KIDD fully automated stripping production lines.
04
Application Scenarios
This 316L stainless steel permanent cathode plate is a standard permanent substrate for hydrometallurgical electrolysis, widely used in electrolytic copper and nickel refining, cobalt-zinc electrolytic material extraction, and copper extraction from low-chlorine PCB waste liquid. It is suitable for continuous large-scale production in large and medium-sized smelters, with a stable precipitated metal purity of over 99.97%.
Product Details
Genuine 316L stainless steel coil
Made with Baosteel/POSCO standard UNS S31603 stainless steel raw materials, a low-carbon molybdenum alloy formula, excellent pitting corrosion resistance under dilute sulfuric acid conditions, and stable mechanical properties after long-term electrolytic immersion.
Integrated Molding + Precision Laser Welding
The entire plate undergoes cold rolling, pickling, and mirror polishing; the conductive crossbeam is integrally extruded and composite-molded, with the crossbeam and electrode plate robotically laser-welded; the edge anti-corrosion insulating strip is integrally extruded.
Rigorous Testing Throughout the Factory Process
Each cathode undergoes flatness testing, conductivity drop testing, acid corrosion simulation testing, and weld sealing testing, all meeting international permanent cathode industry standards.
Product Qualification Certification
Our factory specializes in producing hydrometallurgical permanent cathodes, possessing complete production qualifications and equipped with CNC cutting, fully automated laser welding, polishing, and a professional performance testing laboratory. All 316L stainless steel permanent cathodes are manufactured according to ASTM metallurgical standards. We support third-party SGS/ISO authoritative testing and can provide complete material certificates, welding test reports, and a full set of factory qualification documents; our products comply with EU industrial environmental standards and can be used safely in global hydrometallurgical production lines.
Logistics and After-Sales Service
Packaging And Shipping
Multi-layer anti-collision wooden frame + moisture-proof plastic film double packaging to prevent scratches, oxidation, and deformation of the sheet material during transportation. Regular specifications are in stock; customized orders for thickness and size can be expedited. Sea freight, air freight, and international express delivery are all available, with a complete global logistics network.
After-Sales Guarantee Service
One-stop pre-sales technical consultation: free production line matching, size/conductive lifting beam customization, automatic sheet peeling machine adaptation guidance; long-term guidance on edge insulation strip replacement and maintenance. Free replacement is supported for verified original factory quality issues; zero risk with global sourcing.
Frequently Asked Questions
Q1: What is the difference between 316L stainless steel permanent cathode and titanium cathode?
A1: 316L stainless steel cathode has a lower procurement cost and is suitable for electrolyte chloride ion levels below 50mg/L; Grade 2 titanium cathode has stronger passivation resistance, is suitable for high-chlorine etching waste liquid, and has a longer service life, but the raw material cost is higher.
Q2: Can the sheet thickness, size, and conductive lifting beam structure be customized?
A2: We support full customization. Length, width, thickness, copper ladle length, and lifting beam shape can be adjusted as needed to match the customer's electrolytic cell size.
Q3: Can this permanent cathode be used with a fully automatic stripping machine?
A3: The mirror-passivated ultra-flat surface ensures complete and non-stick metal peeling, directly compatible with all mainstream fully automatic stripping equipment on the market.
Q4: Do you provide samples for testing?
A4: We can provide small-size samples for customers to conduct on-site copper, nickel, cobalt, and zinc electrolytic peeling tests. After verifying the production effect, bulk orders can be placed.
